Description

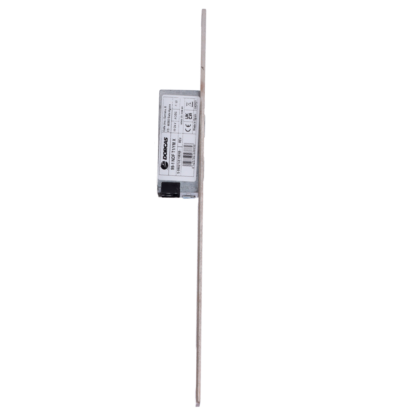

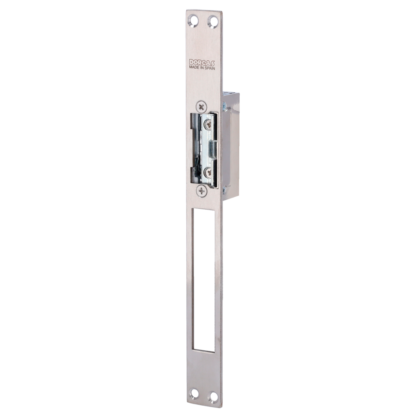

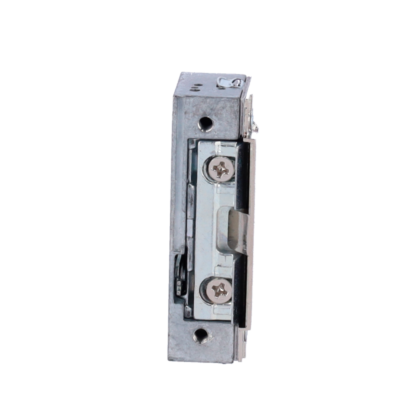

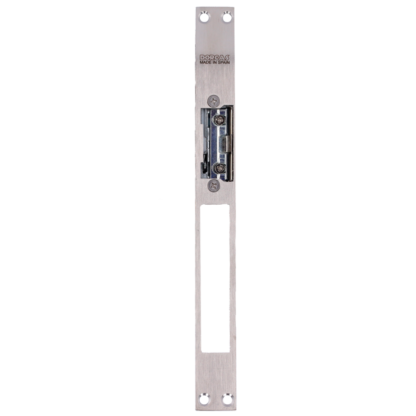

Dorcas electric strikes – For single door : Adjustable radial bolt – Fail Secure (NO) aperture mode – Retention force 330 kg – AC/DC power source 10-24V – Recessed mounting : Socket and free step
- Dorcas
- Electrical door openers
- Fail Secure operation (NO)
- Symmetrical and reversible
- Narrow bottom
- Installation without the need to cut into the front panel or door cutout
- With lock socket
- Stainless steel
- Load resistance 330 kg
- 10-24 VAC/VDC
- EN Certification 14846
Brand | Dorcas |
Model | DR-99NDF-TOP/YSX |
Mounting | Built-in |
Opening mode | Fail Secure (NO) |
Functions | Free passage flap, adjustable radial latch and lock socket Lid with anti-friction system and ramp with latch guide (no need to cut into the front or cutout in the door) |
Retention force | 330 kg |
Power | AC/DC 10-24 V / 500 mA max. |
Material | Stainless steel |
Dimensions | 25 (W) x 250 (H) x 28.5 (D) mm |
Weight | 400 g |
- Electrical door openers
- Installation material
- User instructions
