Description

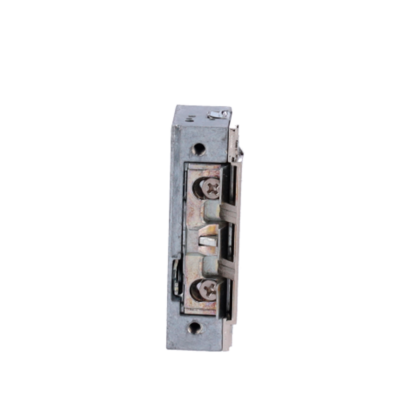

Dorcas electric strikes – For single door : Adjustable radial bolt – Fail Secure (NO) aperture mode – Retention force 330 kg – AC/DC power supply 10-24V | Memory – Recessed mounting | Free passage
- Dorcas
- Electrical door openers
- Fail Secure (NO) operation with memory
- Symmetrical and reversible
- Narrow bottom
- Installation without the need to cut into the front panel or door cutout
- Stainless steel
- Load resistance 330 kg
- 10-24 VAC/VDC
- EN Certification 14846
Brand | Dorcas |
Model | DR-99ABDF-TOP/YSX |
Mounting | Built-in |
Opening mode | Fail Secure (NO) with memory |
Functions | Free passage flap and adjustable radial latch Lid with anti-friction system and ramp with latch guide (no need to cut into the front or cutout in the door) |
Retention force | 330 kg |
Power | AC/DC 10-24 V / 500 mA max. |
Material | Stainless steel |
Dimensions | 25.2 (W) x 160 (H) x 28.5 (D) mm |
Weight | 400 g |
- Electrical door openers
- Installation material
- User instructions
