Description
Professional alarm kit – Certificate Grade 3 – Ethernet connection and dual SIM GPRS – Jeweller, Wings and Fibra Protocols – It includes: hybrid panel, 3 PIR Grade 3, keypad, – wired zone expander and outdoor siren
- Ajax Fibra
- Hybrid GPRS/LAN Alarm System
- Jeweller/Wings 868MHz and Fiber Protocol
- Kit consisting of: a FIBRA-HUBHYBRID-W hybrid panel, a FIBRA-MULTITRANSMITTER-W wired zone expander, a FIBRA-KEYPAD-W keypad, a FIBRA-STREETSIREN-W outdoor siren and 3 Grade 3 KX15DTAM motion detectors
- Compatible with other devices in our catalog: supports up to 100 wireless and wired devices
- Remote access via PC software (Ajax PRO) and mobile app (Ajax Security System)

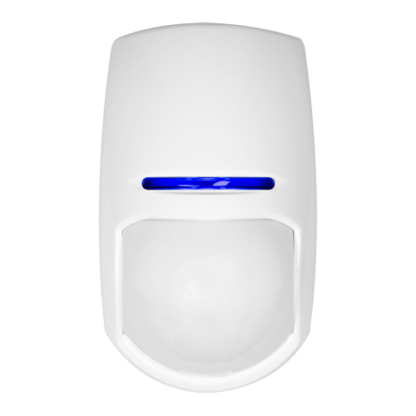

KX15DTAM | |
| Brand | Pyronix |
| Technology | 1 x PIR + 1 x Microwave with AND/OR function |
| PIR lens | 3 available lenses 1/2/3: 60/24/46 Zones & 7/6/6 planes |
| Detection range | 15/18/30m in 85/20/90 for H installation = 2.4/4/2.4m |
| Pet immunity | No |
| Masking | Adjustable from 0 to 1 m |
| Sensitivity | Automatic or Pulse Count 1 adjustment |
| Detection speed | 0.25~2.5 m/s |
| Relay Output | DC 60 V / 50 mA |
| Tamper switch | DC 12 V / 50 mA |
| Power | DC 9~16 V / 13~16 mA @ DC 12 V |
| Temp. operation | -30 C ~ 70 C |
| Dimensions (without bracket) | 114 (H) x 67 (W) x 47 (D) mm |
FIBRA-STREETSIREN-W | |
| Brand | Ajax Fiber |
| Security grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Bus connection | 4 wire cable |
| Volume | 85~113 dB at 1 meter |
| Sound frequency | 3,5 0,5 kHz |
| Alarm duration | Configurable between 3 seconds and 3 minutes |
| LED indicators | Alarm warning and sound signal when armed/disarmed |
| Internal security | Tamper against manipulation |
| Power | 24 V DC (Consumption up to 100 A) |
| Protection | IP54 |
| Temp. operation | -25 C ~ +60 C |
| Dimensions | 198.5 (H) x 198.5 (W) x 58 (D) mm |
| Colour | White |
FIBER-KEYPAD-W | |
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Functions | Armed, disarmed, partially armed and emergency |
| Bus connection | 4 wire cable |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Codes | Up to 49 personal and 1 general |
| Power | 24 V DC (Consumption up to 400 A) |
| Housing material | ABS plastic |
| Temp. operation | From -10 C to +40 C |
| Dimensions | 150 (H) x 103 (W) x 19 (D) mm |
| Colour | White |

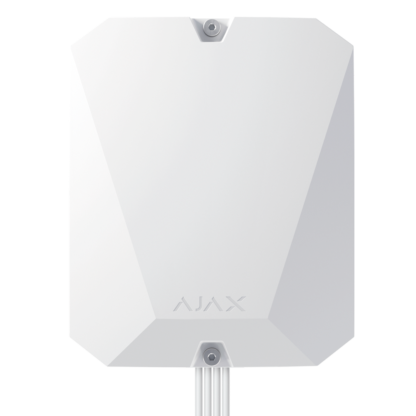

FIBER-HUBHYBRID-W | |
General Specifications | |
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Communication protocols | Jeweller, Wings and Fiber |
| Internal security | Tamper-resistant opening |
| Internal siren | No |
| Communication | Ethernet / Dual SIM 2G (GPRS) |
| Maximum devices | 100 wireless and wired (max. 10 sirens) |
| Video integration | Up to 25 IP cameras or video recorder channels |
| Number or users | Up to 50 |
| Automation scenarios | 32 scenarios |
| Connection with CRA | Contact ID / SIA |
| Compatibility | Not compatible with ocBridge and uartBridge |
| Housing material | ABS plastic |
| Power | AC 110~250 V, 50/60 Hz |
| Backup battery | 12 V DC , 4~7 Ah (not included) |
| Backup battery life | Up to 60 hours (30 Fiber and battery 12V DC devices, 7 Ah) |
| Temp. operation | -10 C ~ +40 C |
| Dimensions | 192 (W) 238 (H) 100 (F) mm |
| Colour | White |
Wireless communication | |
| Communication technology | Jeweller and Wings |
| RF frequency | 868 MHz |
| Jeweller Scope | Up to 2000 m in open space |
| Wings Scope | Up to 1700 m in open space |
Cable communication | |
| Communication technology | Fibra |
| Wired range | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Inputs | 8 independent bus lines |
| Bus connection | 4 wires (2 power and 2 data) |
| Connection topologies | Bus, star and ring |
| Fibra device power supply | 24 V DC (included on plate) |
FIBRA-MULTITRANSMITTER-W | |
| Brand | Ajax Fibra |
| Security grade | Grade 3 |
| Transmission distance | Up to 2000 m (Recommended): twisted pair U/UTP cat. 5) |
| Bus connection | 4 wire cable |
| Wired inputs | Up to 18 (Intrusion, Fire, Medical Aid, Panic Button, Gas Alarm, Tamper Alarm, Malfunction, Flood, Custom) |
| Tamper input | NC: Normally Closed |
| Alarm inputs | NO, NC, EOL, 2EOL, 3EOL / Impulse or bistable |
| End-of-line resistor EOL | From 1 k to 15 k with increments of 100 |
| Cable length | Up to 400 meters |
| Tamper-resistant opening | Front and back |
| Power supply output | Two outputs 12 V / 1 A (in total) for wired sensors |
| Compatibility | Compatible with Hub Hybrid (2G and 4G) |
| Power | AC 110~240 V, 50/60 Hz |
| Backup battery | Battery 12 V / up to 7 Ah (not included) |
| Temp. operation | -10 C ~ 40 C |
| Dimensions of the backup battery | 150 (H) x 64 (W) x 94 (D) mm |
| Dimensions | 238 (H) x 192 (W) x 100 (D) mm |
| Colour | White |
- FIBRA-HUBHYBRID-W Control Panel
- Wired zone expander FIBRA-MULTITRANSMITTER-W
- FIBRA-KEYPAD-W Keyboard
- Outdoor siren FIBRA-STREETSIREN-W
- 3 motion detectors Grade 3 KX15DTAM
- User instructions
