Description

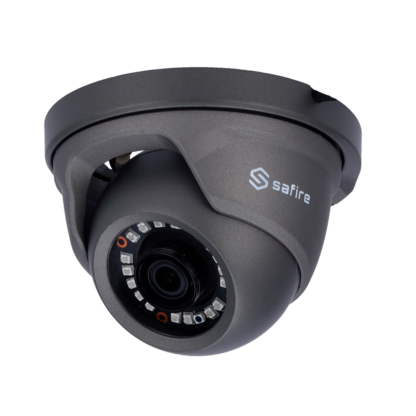

Turret Camera ECO Range – Output 4 in 1 / Resolution 3K (2880×1620) – 1/3″ CMOS 3K (5Mpx 16:9) – 3.6 mm Lens – IR Matrix LEDs IR Matrix LEDs Range 20 m – Weatherproof IP67
- Turret HDTVI, HDCVI, AHD and Analog Camera
- ECO Range
- 1/3″ CMOS
- Resolution 3K (2880×1620)
- Output 4in1
- 3.6 mm Lens
- 0 Lux
- IR Matrix Range 20 m
- 2D DNR
- IR Cut
- Weatherproof IP67
| Range | ECO |
| Image sensor | 3K 1/3″ CMOS (5Mpx 16:9) |
| Maximum resolution | 3K (2880×1620) to 20 fps |
| Resolution | TVI: 3K (20 fps) / 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVI: 4 Mpx (25~30 fps) / 1080p (25~30 [%VAR%] fps) AHD: 4 Mpx (15~30 fps) / 1080p (25~30 [%VAR%] fps) CVBS: PAL/NTSC |
| Lens | 3.6 mm |
| Viewing Angle (FOV) | 60 (H) |
| Minimum illumination | Colour: 0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR |
| Infrared lighting | 0 Lux / IR Matrix LEDs (range 20 m) |
| Day / Night | Auto / Color / BW (black and white) |
| Video output | 1 x BNC switchable between HDTVI / HDCVI / AHD / CVBS |
| Video output switching | Via Switch |
| Basic functions | OSD menu (remote) |
| Configurable OSD functions | DWDR, 2D DNR, AE, ATW, AWB, BLC, Mirror, Flip |
| Alarm | No |
| Audio | No |
| Power | DC 12 V / 300 mA, 4 W max. |
| Degree of protection | Weatherproof IP67 |
| Temp. operation | -10 C ~ +60 C |
| Material | Metal and plastic |
| Dimensions | 68 (H) x 91 () mm |
| Base diameter | 75 () mm / 4 screws |
| Weight | 300 g |
- Turret Camera 4N1
- Installation material
- User instructions
p>Note regarding Supplied plug type for UK and the EU and other European countries) For applicable products that are supplied with power plugs that are shipped to UK and the EU or other European countries we will endevour to swap out or provide an adaptor to suit that countries plug type. For more information please contact us.
This product is shipped from our EU warehouse by DHL for fast delivery usually within a few days.
